Single Crystal X-Ray Diffraction (SC-XRD)

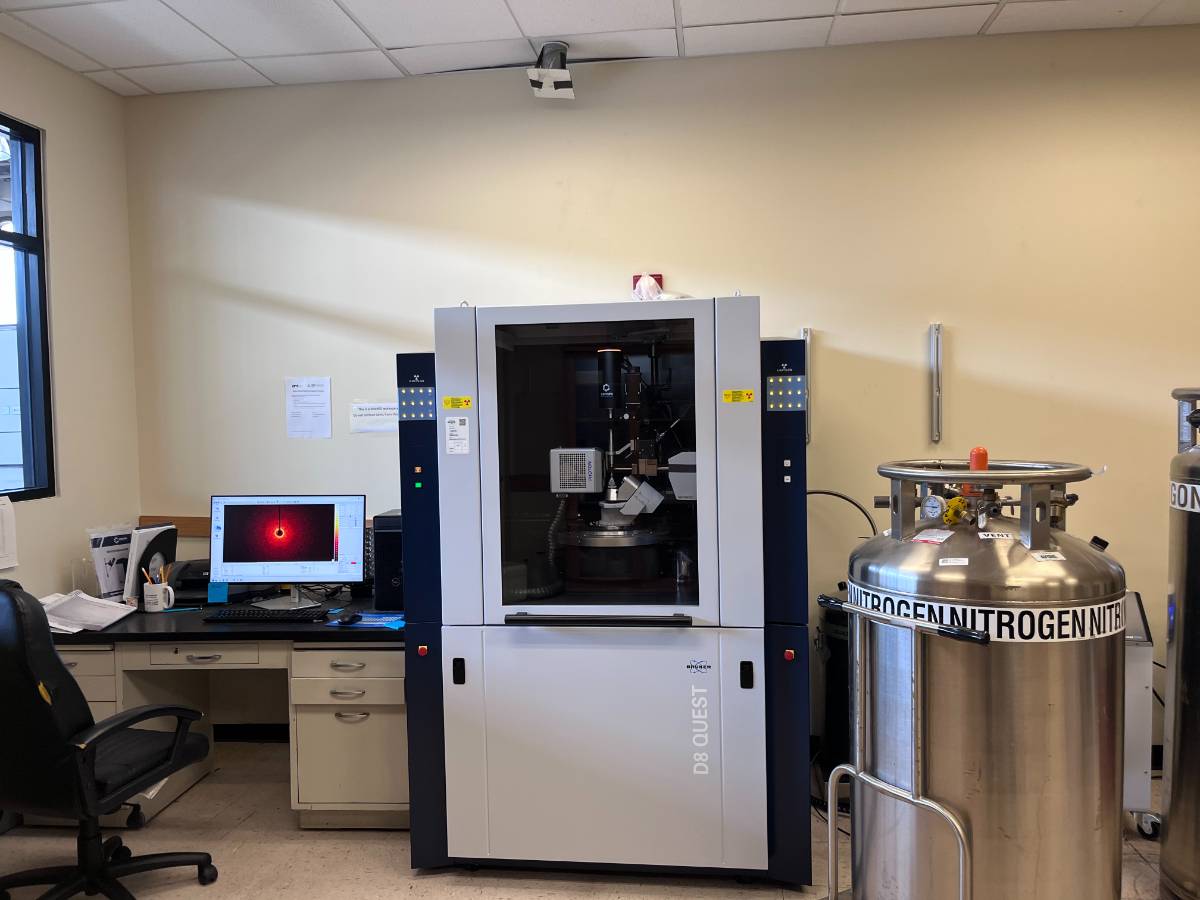

AMI uses a Bruker D8 Quest for single crystal x-ray diffraction.

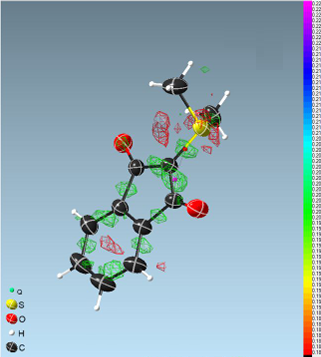

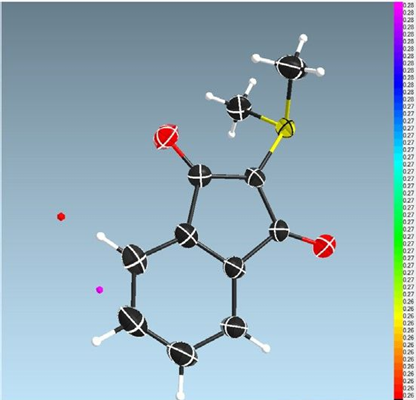

Single crystal X-ray diffraction is an analytical technique which provides detailed information about the internal lattice of crystalline substances, including unit cell dimensions, bond-lengths, bond-angles, and details of site-ordering. The data generated from the SC-XRD can also be used to obtain the actual crystal structure.

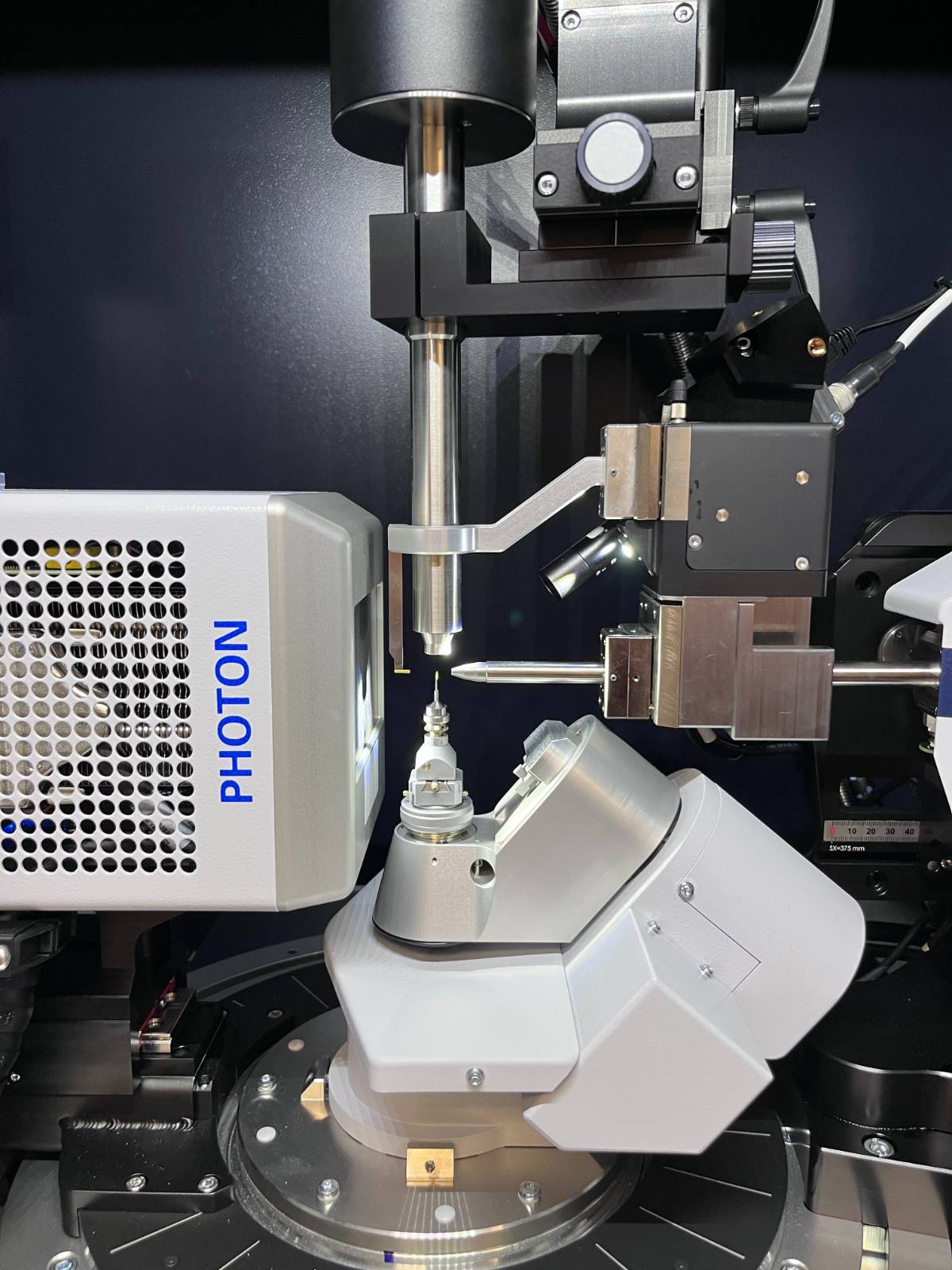

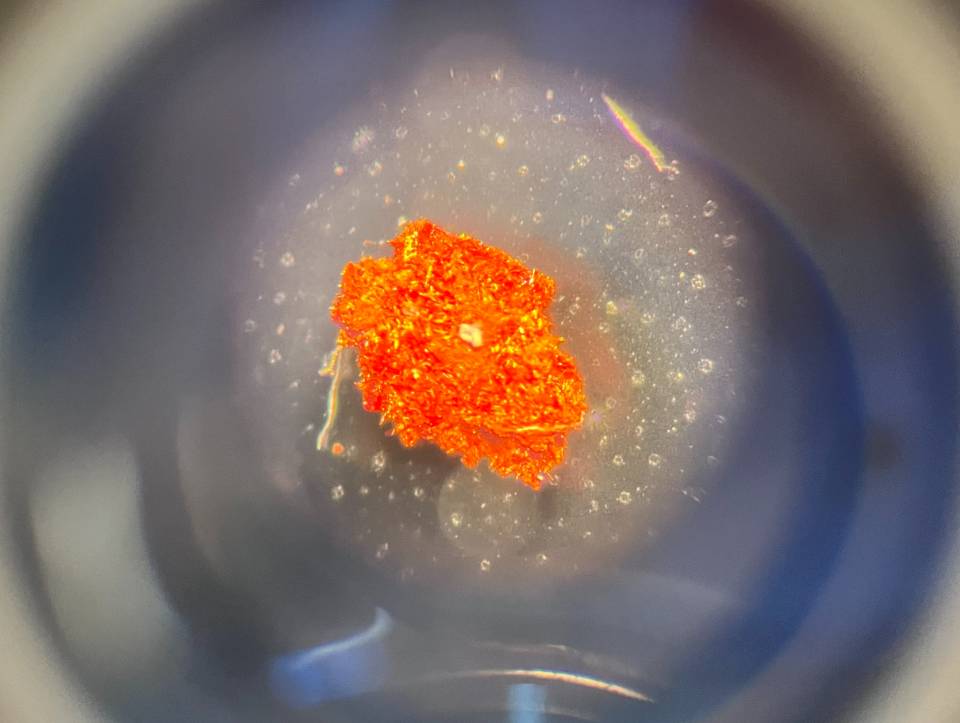

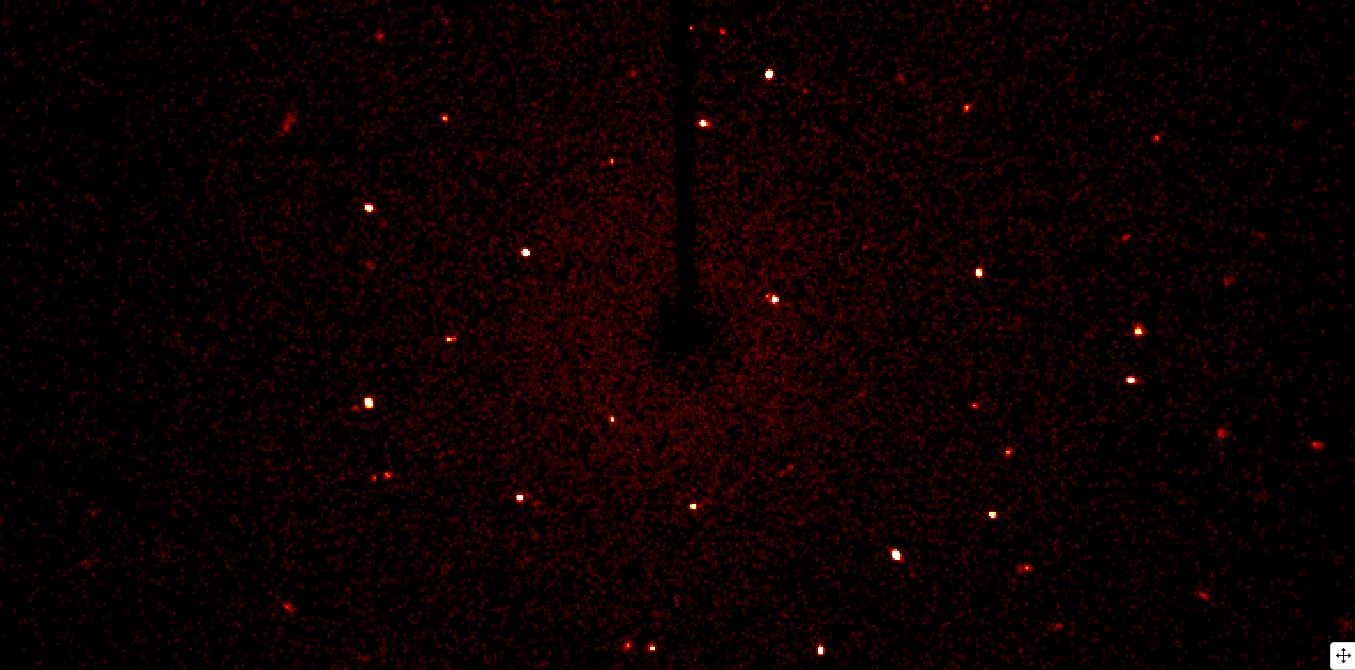

A single crystal is captured on a pin and placed within the instrument. The crystal is then hit with x-rays, and the x-ray scattering allows the SC-XRD to determine the 3-dimensional position of every atom in the structure. For chiral compounds, SC-XRD may be used to determine the absolute configuration of the structure.

This technique may be applied to a wide range of crystalline substances including minerals, inorganic materials, ceramics, metal alloys, drugs, and organic materials.

Specifications
Type of X-ray tube	Mo IµS TIS
Crystal size	10 - 120 µm
Resolution	0.75 Å
Axis	Range
2theta	+148° to -159°
Omega	-270° to +270°
Detector	30 - 240 mm
Kappa	-175° to +175°
Phi	n x 360°
Overall sphere of confusion	<7 µm
